nfpa fire diamond label understanding hazards at a glance introduces a vital visual tool that keeps workplaces and emergency responders safer every day. This instantly recognizable label isn’t just a colorful graphic—it’s a code that quickly communicates crucial information about chemical and fire risks to anyone who might be exposed.
The NFPA fire diamond label was developed by the National Fire Protection Association to provide a standardized system for identifying the hazards of materials, especially where they are stored or transported. With its four distinctive color-coded quadrants, each displaying a number or symbol, the label gives an at-a-glance summary of health, flammability, instability, and special hazards, making it essential for industries from manufacturing to laboratories. Understanding how to read and apply this label correctly is key to effective hazard communication and emergency response.
Introduction to the NFPA Fire Diamond Label
The NFPA fire diamond label is a highly recognized hazard identification system designed to provide quick, clear information about chemical risks, especially during emergencies. Originating from the National Fire Protection Association (NFPA) in the United States, this label helps communicate critical hazard details to responders, workers, and anyone handling hazardous materials.
The fire diamond was first developed in the 1960s to standardize on-site hazard communication. Its adoption has spread across various industries, including manufacturing, laboratories, warehouses, and facilities dealing with chemicals or combustible materials. The label acts as a visual shorthand, ensuring vital hazard data is accessible at a glance and supporting efficient, safe decision-making during both routine operations and emergencies.
Structure and Components of the NFPA Fire Diamond: Nfpa Fire Diamond Label

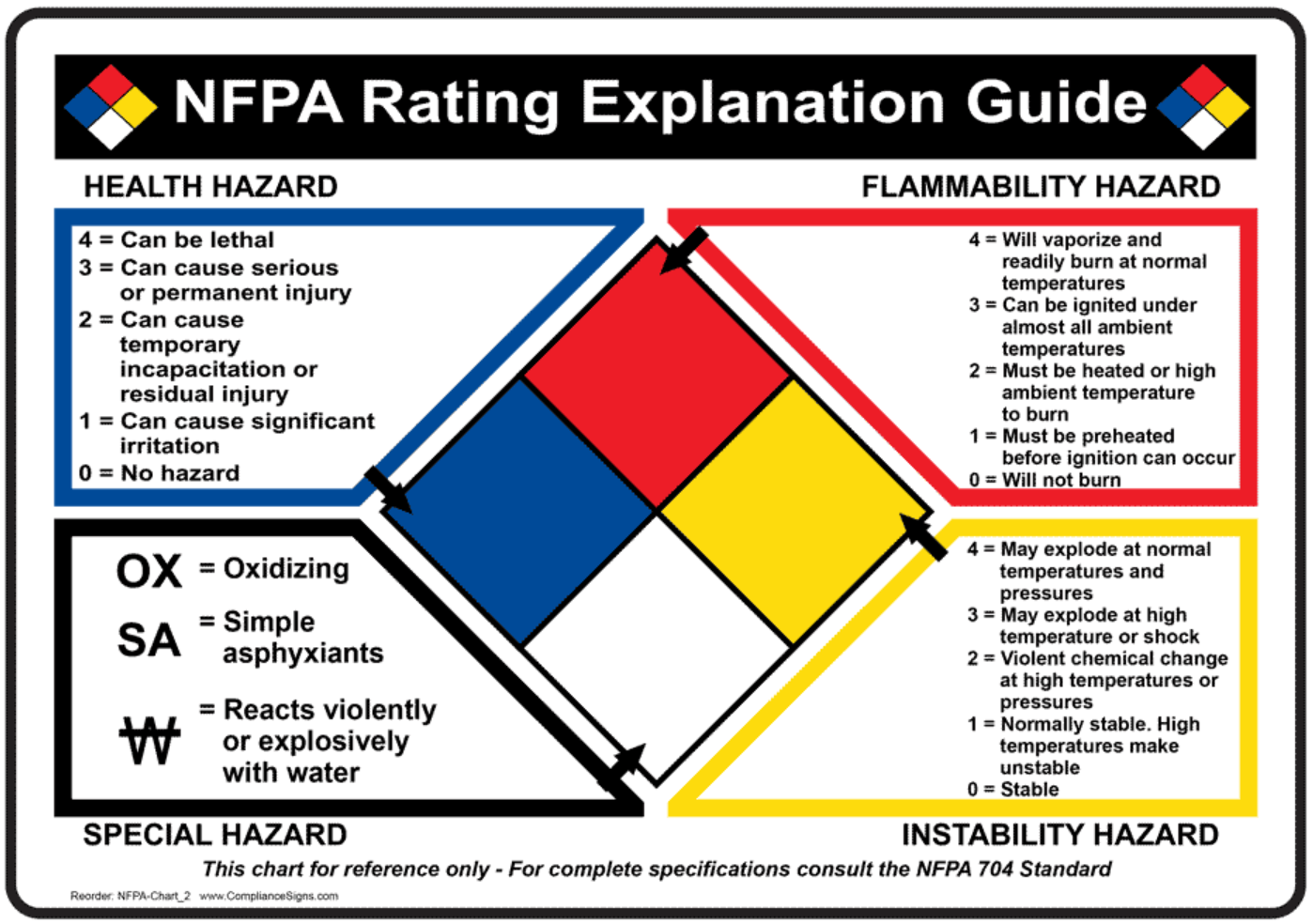

The NFPA fire diamond consists of four color-coded quadrants arranged in a diamond shape. Each quadrant provides specific information about the type of hazard present. The colors and their positions represent different hazard types, and each section contains a number or symbol to indicate the severity or particular nature of the risk.

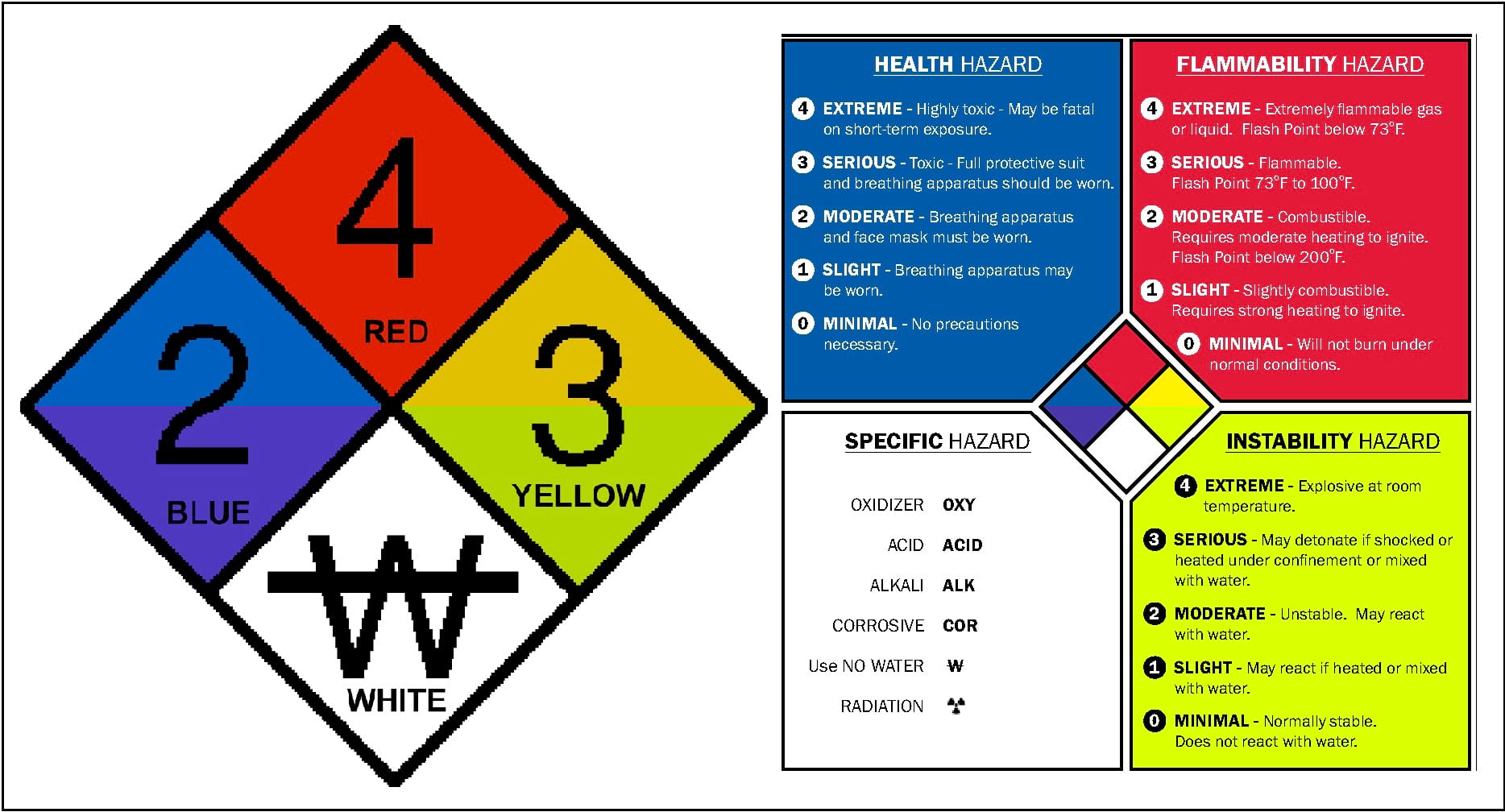

The upper red quadrant represents flammability, the left blue quadrant indicates health hazards, the right yellow quadrant covers instability or reactivity, and the bottom white quadrant is reserved for special hazards. The numbers range from 0 (minimal hazard) to 4 (severe hazard), and special symbols convey unique risks not covered by the numeric system.
| Color | Position | Hazard Type | Example |
|---|---|---|---|
| Blue | Left | Health | Ammonia (Rating 3) |
| Red | Top | Flammability | Gasoline (Rating 3) |
| Yellow | Right | Instability/Reactivity | Hydrogen Peroxide (Rating 2) |
| White | Bottom | Special Hazard | W (Water Reactive) |
Hazard Ratings and Their Significance
Each of the main quadrants—blue, red, and yellow—uses a numeric scale from 0 to 4 to indicate the severity of the hazard. These ratings help users and emergency responders quickly assess the risks associated with a material.
A rating of 0 means no hazard, while 4 represents the highest danger. Assigning accurate ratings is crucial for safety planning, emergency responses, and regulatory compliance.
The following examples illustrate typical ratings for common substances:
- Acetone: Health 1, Flammability 3, Instability 0
- Sulfuric Acid: Health 3, Flammability 0, Instability 2
- Chlorine Gas: Health 4, Flammability 0, Instability 1
- Diesel Fuel: Health 2, Flammability 2, Instability 0
Accurately assigning these ratings requires understanding the chemical’s properties, referencing Material Safety Data Sheets (MSDS), and following industry guidelines. Incorrect ratings can result in inappropriate emergency responses, putting personnel and property at risk.
Special Symbols and Additional Information
The white quadrant at the bottom of the NFPA fire diamond is reserved for special symbols and information not covered by the numeric system. These symbols communicate unique hazards or response requirements that responders must know before taking action.
The presence of these symbols can significantly affect how an emergency is managed, as certain chemicals require specific handling or must not be exposed to certain elements. The most common symbols and their meanings include:
- W – Water reactive; do not use water
- OX – Oxidizer; promotes combustion
- ACID – Acidic substance
- ALK – Alkaline/basic substance
- COR – Corrosive
- Radiation symbol – Radioactive material present
These symbols ensure that even unique or less common hazards are clearly communicated, supporting safe and informed responses.
Concluding Remarks
Mastering the use and interpretation of the nfpa fire diamond label is essential for anyone working with hazardous materials or responsible for safety in industrial environments. With its straightforward design, this label turns complex hazard information into something immediately understandable, helping to save time and lives in critical situations. By keeping up with proper training and best practices, organizations can ensure that the nfpa fire diamond label remains a powerful ally in workplace safety and emergency readiness.
